CNC Shield V3 Engraving Machine Expansion Board for Arduino, A4988 Driver Board for 3D Printer, Robotics Programming, and Mechanical Arm Development

Product Description

Product Overview

The CNC Shield V3 is an expansion board specifically designed for Arduino, supporting multi-axis control and A4988 stepper motor drivers. It is an ideal choice for 3D printing, robotic programming, and mechanical arm development projects. Used in combination with an Arduino board, it can easily implement complex motion control functions, making it widely applicable in CNC engraving, 3D printing, and robotic arm development.

Key Features

• Multi-Axis Motion Control: Supports independent motion control for X, Y, Z, and A axes, enabling complex engraving and printing operations.

• Compatible with A4988 Driver Module: Standardized slot design compatible with A4988, DRV8825, and other common stepper motor driver modules, ensuring easy installation and stable performance.

• Rich Interface Options: Offers multiple input and output interfaces, including limit switches, stepper motors, spindle control, and more, allowing for easy connection of various peripherals and modules.

• Supports 12V-36V Power Input: A wide voltage input range adapts to different power environments, ensuring stable system operation.

• Suitable for Various Project Development: Ideal for developing and controlling CNC engraving machines, 3D printers, robotic arms, and robotics projects.

Specifications

Model: CNC Shield V3

Compatible Controller Board: Arduino UNO R3

Driver Module Compatibility: A4988, DRV8825

Supported Axes: 4 (X, Y, Z, A)

Power Input: 12V-36V DC

Stepper Motor Interface: 4 sets (X, Y, Z, A)

Spindle Interface: 1 set

Limit Switch Interface: 6 sets

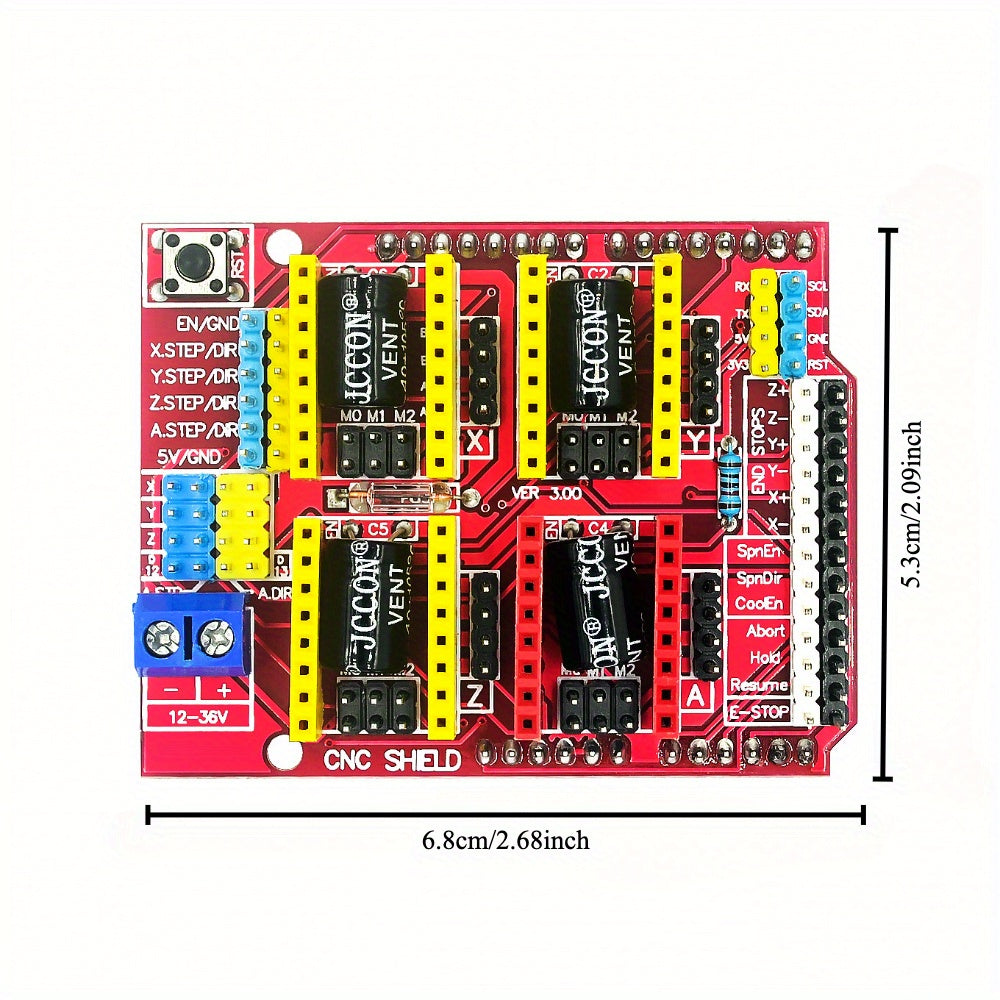

Dimensions: 68mm x 53mm x 17mm

Applications

• CNC Engraving Machine: Precise multi-axis control capabilities make it suitable for fine engraving of various materials such as wood, plastic, and PCBs.

• 3D Printer: Supports various stepper motor controls, ideal for designing and developing different types of 3D printers.

• Robotic Arm: Achieve precise movement and positioning control of robotic arms through flexible axis control.

• Robotics Programming: Suitable for developing and learning complex mechanical and robotics programming projects.

Package Includes

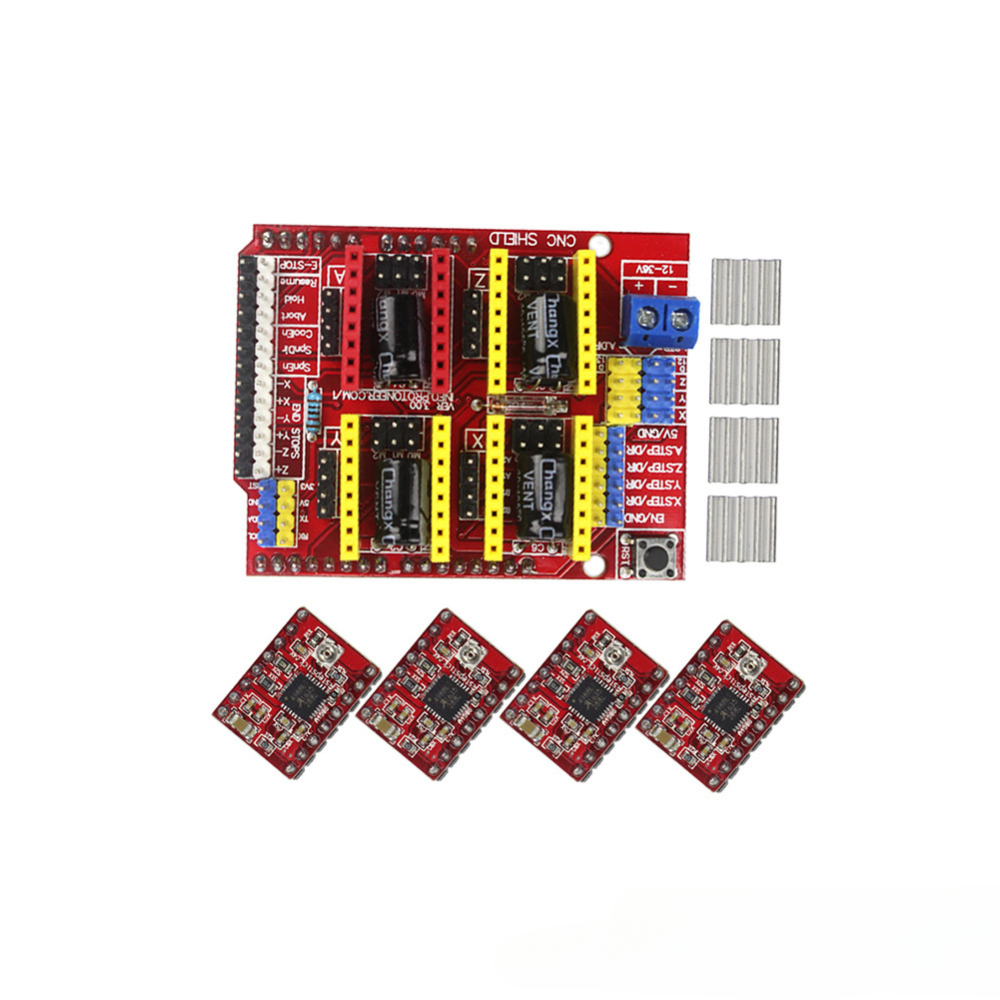

• 1 x CNC Shield V3 Engraving Machine Expansion Board

• 4 x A4988 Stepper Motor Driver Modules

Notes

• Ensure that the Arduino board and driver modules used are compatible with the CNC Shield V3 expansion board to ensure proper system operation.

• When wiring or replacing driver modules, always disconnect the power supply to prevent short circuits and equipment damage.
