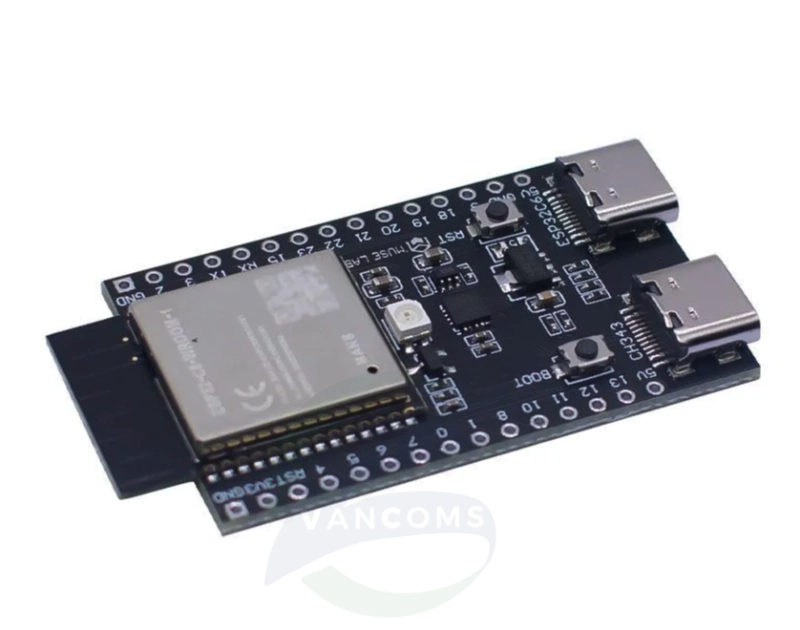

Nano ESP32-C6 Dev Board – Dual USB-C, CH343 USB-UART, Unsoldered Headers

Nano ESP32-C6 Dev Board – Dual USB-C, CH343 USB-UART, Unsoldered Headers

$3.30 USD
$3.47 USD $3.30 USD
$1.00 each
Sale Sold out

Low stock: 5 left

Nano ESP32-C6 Development Board is a compact, feature-rich controller board built around the ESP32-C6-WROOM-1 module. It’s designed for rapid IoT prototyping and embedded projects, featuring dual USB-C connectivity: one for native USB functions and another via the CH343 USB-UART bridge for stable serial flashing and debugging.

With onboard BOOT and RST buttons plus an RGB LED, it’s ideal for quick bring-up, firmware iteration, and portable demos. This listing is for the unsoldered header version, giving you flexibility to solder pin headers, sockets, or wires based on your build.

Typical use cases: IoT nodes, wireless sensors, smart home prototypes, USB-connected gadgets, learning and experimentation, rapid firmware iteration.

Nano ESP32-C6 Development Board

A compact ESP32-C6 controller board built around the ESP32-C6-WROOM-1 module. Designed for rapid prototyping with dual USB-C connectivity and an easy flash/debug workflow.

Key Features

  • ESP32-C6-WROOM-1 module for modern IoT development
  • Dual USB-C ports: native USB + dedicated USB-UART (CH343)
  • BOOT + RST buttons for reliable flashing and recovery
  • Onboard RGB LED for quick status indication
  • Pin headers included (unsoldered) — solder to match your build
  • Compatible with ESP-IDF / Arduino / MicroPython (setup dependent)

Typical Applications

  • IoT nodes & wireless sensors
  • Smart home prototypes
  • USB-connected gadgets & rapid firmware iteration
  • Learning, experimentation, and STEM projects

Specifications

Module ESP32-C6-WROOM-1
USB Dual USB-C (native USB + CH343 USB-UART)
Buttons BOOT, RST
Indicator Onboard RGB LED
Headers Pin headers included (unsoldered)
Form Factor Compact Nano-style board

What’s in the Box

  • 1 × Nano ESP32-C6 Development Board
  • 2 × Pin header strips (included, unsoldered)

Notes

  • Headers are included but not soldered to allow flexible assembly.
  • Board layout/components may vary slightly by batch.
